Disque dur Fudjisu 68mb (M2243AS2) "MFM Full Height"

Disque dur Magnetic Peripherals 43mb (WREN IIHH 94205-51 CDC) "MFM Half Height"

Disque dur Seagate 10mb (ST-412) "MFM Full Height"

Disque dur Seagate 38mb (ST-4038) "MFM Full Height"

Disque dur Seagate 21mb (ST-225) "MFM Half Height"

Disque dur Seagate 43mb (ST-251) "MFM Half Height"

HardCard 20 Plus Disque dur 20mb "Isa 8 bits"

KALOK KL320 Octagon 1 (21mb) "MFM"

IBM WDL-330P (30mb) "ESDI"

IBM WD-387 (60mb) "ESDI"

Les Contrôleur de disque MFM ISA

Magazines




Haut

Disque dur Fudjisu 68mb (M2243AS2) "MFM Full Height"

Fudjitsu m2243as2 1-3   Fudjitsu m2243as2 2-3

Fudjitsu m2243as2 3-3



Spécifications techniques

M 2 2 4 3 A S 2    FUJITSU
NO MORE PRODUCED                                      Native|  Translation
                                                      ------+-----+-----+-----
Form                 5.25"/FH              Cylinders     754|     |     |
Capacity form/unform    68/   86 MB        Heads          11|     |     |
Seek time   / track  30.0/ 6.0 ms          Sector/track   16|     |     |
Controller           MFM / ST506           Precompensation   383
Cache/Buffer               KB              Landing Zone      753
Data transfer rate    0.625 MB/S int       Bytes/Sector      512
                      0.625 MB/S ext
Recording method     MFM                            operating  | non-operating
                                                  -------------+--------------
Supply voltage     5/12 V       Temperature *C         5 45    |    -40 60
Power: sleep              W     Humidity     %        20 80    |      5 95
       standby            W     Altitude    km            3.000|        12.000
       idle               W     Shock        g         2       |     20
       seek               W     Rotation   RPM      3600
       read/write    30.0 W     Acoustic   dBA        45
       spin-up            W     ECC        Bit
                                MTBF         h      30000
                                Warranty Month
Lift/Lock/Park     YES          Certificates

Lien vers les spécifications techniques complètes : Fujitsu m2243as2Fujitsu m2243as2 (14.46 Ko)

Wikipedia : http://fr.wikipedia.org/wiki/Fujitsu



Vidéos

Le Fudjisu M2243AS2 en fonctionnement  :




Haut

Disque dur Magnetic Peripherals 43mb (WREN IIHH 94205-51 CDC) "MFM Half Height"

Magnetic Peripherals CDC Wren2 94205-51 1

Magnetic Peripherals CDC Wren2 94205-51 2

Magnetic Peripherals CDC Wren2 94205-51 3



Spécifications techniques

W R E N   I I H H   9 4 2 0 5 - 5 1    CDC
NO MORE PRODUCED                                      Native|  Translation
                                                      ------+-----+-----+-----
Form                 5.25"/HH              Cylinders     989|     |     |
Capacity form/unform    43/   52 MB        Heads           5|     |     |
Seek time   / track  28.0/ 5.0 ms          Sector/track   17|     |     |
Controller           MFM / ST506           Precompensation   128
Cache/Buffer               KB              Landing Zone
Data transfer rate    0.625 MB/S int       Bytes/Sector      512
                      0.625 MB/S ext
Recording method     MFM                            operating  | non-operating
                                                  -------------+--------------
Supply voltage     5/12 V       Temperature *C        10 50    |    -40 70
Power: sleep              W     Humidity     %         8 80    |      5 95
       standby            W     Altitude    km    -0.305  3.048| -0.305 12.210
       idle          18.0 W     Shock        g         2       |     32
       seek          20.0 W     Rotation   RPM      3597
       read/write         W     Acoustic   dBA
       spin-up            W     ECC        Bit
                                MTBF         h      40000
                                Warranty Month
Lift/Lock/Park     YES          Certificates     CSA,FCC,IEC380,UL478,VDE

Lien vers les spécifications techniques dans le brochure du constructeur : Cdc wren ii hh brochure nov85Cdc wren ii hh brochure nov85 (2.04 Mo)




Haut

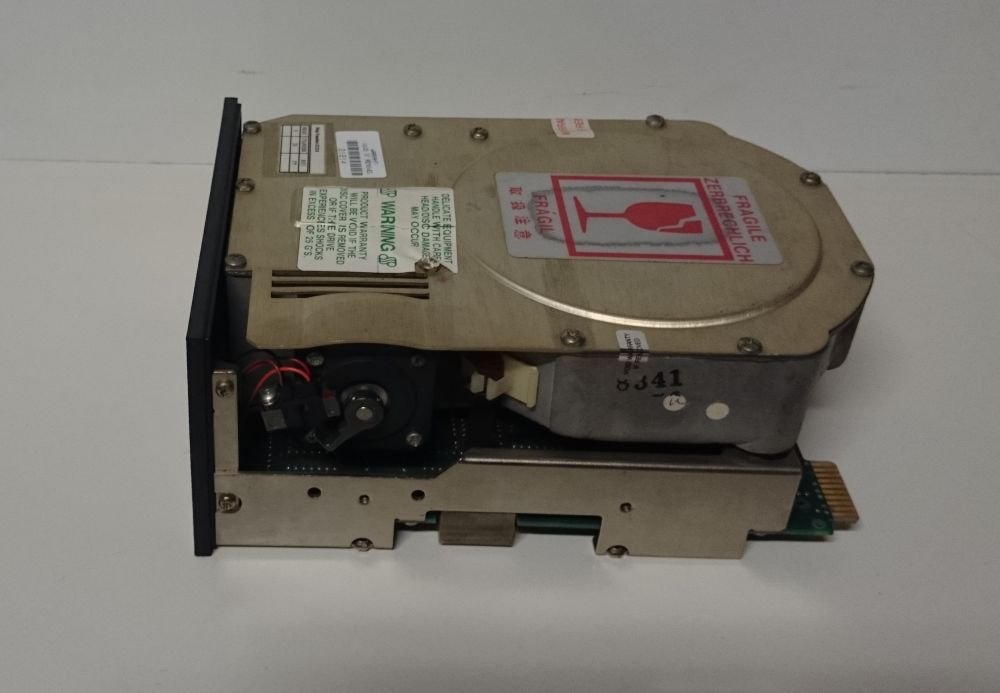

Disque dur Seagate 10mb (ST-412) "MFM Full Height"

Disque Dur Seagate ST-412 1   Disque Dur Seagate ST-412 2

Disque Dur Seagate ST-412 3   Disque Dur Seagate ST-412 4



Spécifications techniques

ST-412 ST412 MFM

                       OPTION SHUNT BLOCK
                            ÚÄÄ\ÄÄÄ/ÄÄ¿
                          1 ³   R     ³ 16
                          2 ³   NC    ³ 15
                          3 ³   NC    ³ 14
                          4 ³   NC    ³ 13
                          5 ³   DS4   ³ 12
                          6 ³   DS3   ³ 11
                          7 ³   DS2   ³ 10
                          8 ³   DS1   ³ 9
                            ÀÄÄÄÄÄÄÄÄÄÙ

                     DS1,DS2,DS3,DS4=DRIVE SELECTED
                         R=RADIAL OPERATION

                              ST - 412

       UNFORMATTED CAPACITY (MB) ________________12.76
       FORMATTED CAPACITY (17 SECTORS) (MB) _____10.0
       ACTUATOR TYPE ____________________________STEPPER
       TRACKS ___________________________________1,224
       CYLINDERS ________________________________306
       HEADS ____________________________________4
       DISCS ____________________________________2
       MEDIA TYPE _______________________________OXIDE
       RECORDING METHOD _________________________MFM
       TRANSFER RATE (mbits/sec) ________________5.0
       INTERFACE ________________________________ST412
       TPI (TRACKS PER INCH) ____________________345
       BPI (BITS PER INCH) ______________________9,074
       AVERAGE ACCESS (ms) ______________________85
       SINGLE TRACK SEEK (ms) ___________________< 16.67
       MTBF (power-on hours) ____________________11,000
       POWER REQUIREMENTS: +12V START-UP (amps) _3.5
                           +12V TYPICAL (amps) __1.7
                           +5V TYPICAL (amps) ___1.1
                           TYPICAL (watts) ______25.9
                           MAXIMUM (watts) ______50
       BUFFERED STEP PULSE RATE (micro sec) _____5-500
       WRITE PRECOMP (cyl) ______________________128
       REDUCED WRITE CURRENT (cyl) ______________N/A (307)
       LANDING ZONE (cyl)________________________319
       IBM AT DRIVE TYPE ________________________1

Seagate reserves the right to change, without notice, product
offerings or specifications. (6/26/90)

Lien vers les spécifications techniques complètes (OEM Manual) : St412 oemmanual apr82St412 oemmanual apr82 (1.35 Mo)

Lien vers les spécifications techniques complètes (Instalation Guide) : Seagate st21 installation guideSeagate st21 installation guide (629.7 Ko)

Hard Drive History : http://redhill.net.au/d/1.php

Le Grenier Informatique : Ajout Disque Dur IBM AT 5170



Vidéos

Le Seagate ST-412 en fonctionnement  :




Haut

Disque dur Seagate 38mb (ST-4038) "MFM Full Height"

Seagate ST-4038 1

Seagate ST-4038 2

Seagate ST-4038 3   Seagate ST-4038 4



Spécifications techniques

ST-4038 ST412 MFM


UNFORMATTED CAPACITY (MB) ________________38.2
       FORMATTED CAPACITY (17 SECTORS) (MB) _____31.9
       ACTUATOR TYPE ____________________________VOICE COIL
       TRACKS ___________________________________3,665
       CYLINDERS ________________________________733
       HEADS ____________________________________5
       DISCS ____________________________________3
       MEDIA TYPE _______________________________OXIDE
       RECORDING METHOD _________________________MFM
       TRANSFER RATE (mbits/sec) ________________5.0
       SPINDLE SPEED (RPM) ______________________3,600
       INTERFACE ________________________________ST412
       TPI (TRACKS PER INCH) ____________________750
       BPI (BITS PER INCH) ______________________9,617
       AVERAGE ACCESS (ms) ______________________40
       SINGLE TRACK SEEK (ms) ___________________8
       MTBF (power-on hours) ____________________25,000
       POWER REQUIREMENTS: +12V START-UP (amps) _4.0
                           +12V TYPICAL (amps) __1.5
                           +5V TYPICAL (amps) ___1.5
                           TYPICAL (watts) ______25.5
                           MAXIMUM (watts) ______56
       BUFFERED STEP PULSE RATE (micro sec) _____10-70
       WRITE PRECOMP (cyl) ______________________300
       REDUCED WRITE CURRENT (cyl) ______________N/A (734)
       LANDING ZONE (cyl)________________________AUTO PARK
       IBM AT DRIVE TYPE ________________________22, 20 or 8



Lien vers les spécifications techniques complètes : Seagate st 4038Seagate st 4038 (12.71 Ko)



Vidéos

Le Seagate ST-4038 en fonctionnement  :

Drive Bench: Vintage Seagate ST-4038 :




Haut

Disque dur Seagate 21mb (ST-225) "MFM Half Height"

Seagate ST-225 1-3  Seagate ST-225 3-3

Seagate ST-225 2-3



Spécifications techniques

S T 2 2 5 SEAGATE
NO MORE PRODUCED                                      Native|  Translation
                                                      ------+-----+-----+-----
Form                 5.25"/HH              Cylinders     615|     |     |
Capacity form/unform    21/   26 MB        Heads           4|     |     |
Seek time   / track  65.0/ 20.0 ms         Sector/track   17|     |     |
Controller           MFM / ST412           Precompensation   300
Cache/Buffer               KB              Landing Zone      670
Data transfer rate    0.625 MB/S int       Bytes/Sector      512
                      0.625 MB/S ext
Recording method     MFM                            operating  | non-operating
                                                  -------------+--------------
Supply voltage     5/12 V       Temperature *C        10 45    |    -40 60
Power: sleep              W     Humidity     %         8 80    |      5 95
       standby       14.8 W     Altitude    km    -0.305  3.048| -0.305  9.140
       idle               W     Shock        g        10       |     40
       seek               W     Rotation   RPM      3600
       read/write    33.0 W     Acoustic   dBA
       spin-up            W     ECC        Bit
                                MTBF         h      100000
                                Warranty Month
Lift/Lock/Park     NO           Certificates      CSA,TUV,UL478,VDE

Lien vers les spécifications techniques complètes : Seagate st 225Seagate st 225 (21.02 Ko)

Wikipedia : http://en.wikipedia.org/wiki/Seagate_Technology



Vidéos

Le Seagate ST-225 en fonctionnement  :




Haut

Disque dur Seagate 43mb (ST-251) "MFM Half Height"

Disque dur Seagate ST-251 1  Disque dur Seagate ST-251 2

Disque dur Seagate ST-251 3



Spécifications techniques

ST-251 ST412 MFM

                                                          /Ä4Ä3Ä2Ä1Ä\
                                                          ³ O O O O ³ Power
              o o o o o o o o                             ÀÄÄÄÄÄÄÄÄÄÙ
  ÚData Cable o o o o o o o o  ÚController Cable    1       5 G G 12
 ÍÍÍÍÍÍÍÍÍ ÍÍ ³ ³ ³ ³ ³ ³ ³ ³ ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ ÍÍÍ   ÍÍÍÍÍÍÍÍÍÍÍÍ
              ³ ³ ³ ³ ³ ³ ³ ³ 1ÄÄÄÄÄÄÄÄÄÄÄÄ¿
              ³ ³ ³ ³ ³ ³ ³ ³ ÀÄTerminatorÄÙ
              ³ ³ ³ ³ ³ ³ ³ ³
Drive Select->1 2 3 4 ³ ³ ³ À Radial
                ³ ³ ³ ³ ³ ÀÄÄ Reserved
                ³ ÀÂÙ ³ ÀÄÄÄÄ Write Fault
                ³  ³  ÀÄÄÄÄÄÄ Factory Test
                ³  ÀÄÄÄÄÄÄÄÄÄ Never Used (Drive Select 3 and 4)
                À If twisted cable, use Drive Select 2

                          ST - 251

       UNFORMATTED CAPACITY (MB) ________________51.2
       FORMATTED CAPACITY (17 SECTORS) (MB) _____42.8
       ACTUATOR TYPE ____________________________STEPPER
       TRACKS ___________________________________4,920
       CYLINDERS ________________________________820
       HEADS ____________________________________6
       DISCS ____________________________________3
       MEDIA TYPE _______________________________THIN FILM
       RECORDING METHOD _________________________MFM
       TRANSFER RATE (mbits/sec) ________________5.0
       SPINDLE SPEED (RPM) ______________________3,600
       AVERAGE LATENCY (mSEC) ___________________8.3
       INTERFACE ________________________________ST412
       SECTORS PER DRIVE ________________________83,640
       TPI (TRACKS PER INCH) ____________________777
       BPI (BITS PER INCH) ______________________9,935
       AVERAGE ACCESS (ms) ______________________40/28*
       SINGLE TRACK SEEK (ms) ___________________8
       MAX FULL SEEK (ms) _______________________ /70
       MTBF (power-on hours) ____________________100,000
       POWER REQUIREMENTS: +12V START-UP (amps) _2.0/2.5*
                           +12V TYPICAL (amps) __0.5
                           +5V TYPICAL (amps) ___1.0/1.2*
                           TYPICAL (watts) ______11/12*
                           MAXIMUM (watts) ______29/36*
       BUFFERED STEP PULSE RATE (micro sec) _____3-200
       WRITE PRECOMP (cyl) ______________________N/A (821)
       REDUCED WRITE CURRENT (cyl) ______________N/A (821)
       LANDING ZONE (cyl)________________________AUTO PARK
       IBM AT DRIVE TYPE ________________________44, 40, or 3**

       *ST251-0/ST251-1
       **MAY REQUIRE PARTITIONING SOFTWARE

Seagate reserves the right to change, without notice, product
offerings or specifications. (6/26/90)

Lien vers les spécifications techniques complètes : Seagate st 225Seagate ST251 Product Manual (3.6 Mo)

Hard Drive History : http://redhill.net.au/d/5.php



Vidéos

Le Seagate ST-251 en fonctionnement :




Haut

HardCard 20 Plus Disque dur 20mb "Isa 8 Bits"

Harcard20 1-2

Hardcard20 2-2



Spécifications techniques

Publicité Hardcard20 (BORCHURE) 1-2Publicité Hardcard20 (BORCHURE) 2-2

Wikipedia : http://en.wikipedia.org/wiki/Hardcard

Installation Disk : Plus hardcard20 installation diskPlus hardcard20 installation disk (396.22 Ko)




Haut

KALOK KL320 Octagon 1 (21mb)"MFM"

Kalok KL320 MFM 20mb 1 Kalok KL320 MFM 20mb 2



Spécifications techniques

Kalok Corporation

KL320 Octagon 1
Interface: ST506/412
Formatted Capacity: 21.4MB

Physical Characteristics

     Cylinders: 615
     Precomp: 300
     Sectors/Track: 17
     Platters: 2
     R/W Heads: 4





Performance

     Average Access: 40ms
     Track/Track Access: 10.0ms
     Transfer Rate: 5.0Mb
     Head Activation: SM
     Recording Method: (1,3)MFM
     Tracks/Inch (TPI): 814
     M.T.B.F.: 44K (hours)
     Power: 10.0W
     Height: 41.3 (mm)

Lien vers les spécifications techniques complètes : Kalok kl320 octagon 1Kalok kl320 octagon 1 (19.74 Ko)

RedHill Technology : http://redhill.net.au/d/9.php



Vidéos

Le Kalok KL320 en fonctionnement  :




Haut

IBM WDL-330P (30mb) "ESDI"

IBM WDL-330P 1 IBM WDL-330P 2

IBM WDL-330P 3



Spécifications techniques

IBM Corporation

IBM PS/1
Western Digital 30MB HDD
Model# WDL-330P
IBM FRU P/N #38F8298

ESDI Connector





Vidéos

Le WDL-330P en fonctionnement  :




Haut

IBM WD-387 (60mb) "ESDI"

IBM WD-387 1   IBM WD-387 2

IBM WD-387 3



Spécifications techniques

IBM Corporation

IBM PS/2

P/N 6128257 60MB
FRU P/N 6128294
MLC: C27511
MODEL: WD-387

ESDI Connector






Haut

Les Contrôleur de disque MFM ISA

IBM 1501492 (Pour IBM XT 5150, 5160 8 Bits)

Hard Drive Controler IBM 1

Hard Drive Controler IBM 2

Hard Drive Controler IBM 3   Hard Drive Controler IBM 4



Spécifications techniques

The IBM ROM is 8K in size and stamped with IBM part number "5000059".

The ROM contains the string of "5000059 (C)COPYRIGHT IBM 1982".

This controller only supports a drive that has the following characteristics: cylinders = 306 / heads = 4 / WPC = 0 / step pulses per here are valid.

IBM supplied with the controller, a Seagate ST-412 drive. Interestingly, the ST-412 matches the above characteristics except for WPC. The ST-412 has a WPC of 128.

Either IBM did not consider WPC important (unlikely), or a mistake was made, or perhaps Seagate informed IBM that WP on all cylinders of the ST-412 is acceptable.

Documntation techniques IBM : Ibm fixed disk adapterIbm fixed disk adapter (1021.6 Ko)

Schémas de câblage et formatage de bas niveau (minuszerodegrees.net) : http://www.minuszerodegrees.net/ibm_xebec/ibm_xebec.htm​



IBM 68X3814 (Pour IBM AT 5170, 16 Bits)

IBM 68X3814 1

IBM 68X3814 2

La configuration de cette carte se fait par le BIOS de l'IBM AT qui est accessible par la disquette "Diagnotics Disk" : Ibm advanced diagnostics 2.07Ibm advanced diagnostics 2.07 (140.4 Ko)

Pour connaître le bon type du disque dur à entrer dans le BIOS : http://grenier-jl.e-monsite.com/pages/documents/ibm-at-clones-disk-type.html



Vidéos

Exemple de configuration du BIOS pour un disque dur, via la disquette "Diagnostics Disk" :



Winchester Disk Controller WDC-II (Parfait pour les Seagate ST-225) :

Carte Controler Seagate 1   Carte Controler Seagate 2




Haut

Magazines

Science et vie Micro :

Disque dur Full Height (SVM19) 1-3Disque dur Full Height (SVM19) 2-3Disque dur Full Height (SVM19) 3-3

Hardcard (SVM28) 1-5Hardcard (SVM28) 2-5Hardcard (SVM28) 3-5Hardcard (SVM28) 4-5Hardcard (SVM28) 5-5

Hardcard (SVM43) 1-2Hardcard (SVM43) 2-2

Soft & Micro :

DOS Disque dur (SOLF&MICRO10) 1-5DOS Disque dur (SOLF&MICRO10) 2-5DOS Disque dur (SOLF&MICRO10) 3-5DOS Disque dur (SOLF&MICRO10) 4-5DOS Disque dur (SOLF&MICRO10) 5-5

ABC Informatique :

Disque dur (ABC INFORMATIQUE18) 1-2Disque dur (ABC INFORMATIQUE18) 2-2

PC Novice :

Disque Dur (PC NOVICE27) 1-5Disque Dur (PC NOVICE27) 2-5Disque Dur (PC NOVICE27) 3-5Disque Dur (PC NOVICE27) 4-5Disque Dur (PC NOVICE27) 5-5

Micro Ordinateurs :

Disque Dur (MICRO ORDINATEURS) 1-4Disque Dur (MICRO ORDINATEURS) 2-4Disque Dur (MICRO ORDINATEURS) 3-4Disque Dur (MICRO ORDINATEURS) 4-4

Byte :

Hardcard (BYTE VOL11 N5) 1-3Hardcard (BYTE VOL11 N5) 2-3Hardcard (BYTE VOL11 N5) 3-3

Fast Drives For Modern Times 1988 (BYTE 07-1988) 1-6Fast Drives For Modern Times 1988 (BYTE 07-1988) 2-6Fast Drives For Modern Times 1988 (BYTE 07-1988) 3-6Fast Drives For Modern Times 1988 (BYTE 07-1988) 4-6Fast Drives For Modern Times 1988 (BYTE 07-1988) 5-6Fast Drives For Modern Times 1988 (BYTE 07-1988) 6-6

Creative Computing Magazine :

Invasion Of The Hard Disk Drives 1985 (CREATIVE COMPUTING MAGAZINE VOL11 N8) 1-5Invasion Of The Hard Disk Drives 1985 (CREATIVE COMPUTING MAGAZINE VOL11 N8) 2-5Invasion Of The Hard Disk Drives 1985 (CREATIVE COMPUTING MAGAZINE VOL11 N8) 3-5Invasion Of The Hard Disk Drives 1985 (CREATIVE COMPUTING MAGAZINE VOL11 N8) 4-5Invasion Of The Hard Disk Drives 1985 (CREATIVE COMPUTING MAGAZINE VOL11 N8) 5-5

Publicité :

Publicité Disque Dur (BYTE VOL9 N13) Publicité Disque Dur (BYTE VOL6 N3) Publicité Disque Dur (BYTE VOL9 N12) Publicité Disque Dur (BYTE VOL14 N1) Publicité Disque Dur (BYTE VOL10 N5) Publicité Disque Dur (BYTE VOL10 N4) Publicité Disque Dur (BYTE VOL11 N9) Publicité Disque Dur (BYTE VOL12 N1) Publicité Disque Dur (BYTE VOL12 N2) Publicité Disque Dur (BYTE VOL15 N9) Publicité Disque Dur Seagate ST251 (BYTE 05-1988) Publicité Seagate ST-225 (INFOWORLDV9I49) Publicité Disque Dur Seagate ST-251 Publicité Disque Dur IBM XT Full Height (MICRO WORLD)

Publicité Hardcard (SVM44) 1-2Hardcard (SVM44) 2-2 Publicité Hardcard (BYTE VOL11 N2)Publicité Hardcard (BYTE VOL16 N3)

Ajouter un commentaire
