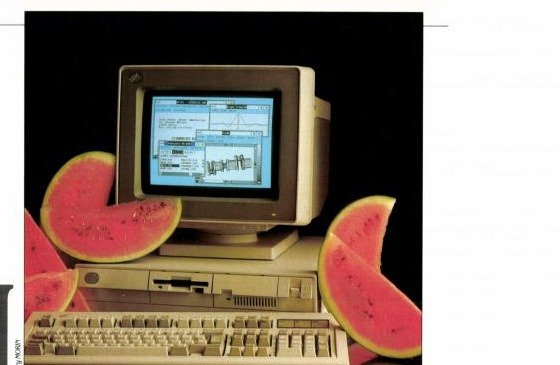

IBM PS/2 (Model 50Z)

IBM PS2 55 SX 1        IBM PS2 55 SX 2



Spécifications techniques

Constructeur IBM (US)
Microprocesseur

Intel 80386sx (32 bit) 16 Mhz, 0-2 wait states. Coprocessor: socket for optional i80387 math coprocessor.
Mémoire vive (RAM) Min/Max on system board: 1/4MB (16MB max. using adapter cards) RAM: DRAM (PS/2 72-pin SIMM, 2 sockets) 85ns parity checked
Mémoire morte (ROM) 128kb
Capacités graphiques Graphics modes supported: Integrated VGA Display adapter
320x200, 256 colours
640x480, 16 colours
Capacités sonores Beeper

Clavier

 Type: 101 key enhanced
Interfaces 16-bit MCA (Micro Channel) Total number of expansion slots: 3
Logiciels Operating system: IBM PC DOS Versions 3.30 or higher
Périfériques standards PS/2 keyboard, PS/2 mouse, serial, parallel, VGA
Dimensions (HxWxD), 102 x 406 x 397 mm
Poids 8.65 Kg
Mise en vente 1999



Liens

Wikipedia : http://fr.wikipedia.org/wiki/IBM_Personal_System/2

Le Grenier Informatique : The IBM PS/2 Computers 1987 (BYTE VOL12 N6)

Le Grenier Informatique : Campagne PUB IBM PS/2 1987-1988 (BYTE)

Le Grenier Informatique : Manuels IBM PS2 Series



Magazines

Science et vie Micro :

IBM PS2 SX55 (SVM63) 1-3IBM PS2 SX55 (SVM63) 2-3IBM PS2 SX55 (SVM63) 3-3

IBM PS2 55SX (SVM39) 1-9IBM PS2 55SX (SVM39) 2-9IBM PS2 55SX (SVM39) 3-9IBM PS2 55SX (SVM39) 4-9IBM PS2 55SX (SVM39) 5-9IBM PS2 55SX (SVM39) 6-9IBM PS2 55SX (SVM39) 7-9IBM PS2 55SX (SVM39) 8-9IBM PS2 55SX (SVM39) 9-9

IBM PS2 55SX (SVM42) 1-2IBM PS2 55SX (SVM42) 2-2

IBM PS2 55SX (SVM58) 1-2IBM PS2 55SX (SVM58) 2-2

Microid3 / TILT :

IBM PS2 55SX (MICROID3)   IBM PS2 55SX (TILT43)

Byte :

IBM PS/2 Model 50 (BYTE VOL12 N8) 1-8IBM PS/2 Model 50 (BYTE VOL12 N8) 2-8IBM PS/2 Model 50 (BYTE VOL12 N8) 3-8IBM PS/2 Model 50 (BYTE VOL12 N8) 4-8IBM PS/2 Model 50 (BYTE VOL12 N8) 5-8IBM PS/2 Model 50 (BYTE VOL12 N8) 6-8IBM PS/2 Model 50 (BYTE VOL12 N8) 7-8IBM PS/2 Model 50 (BYTE VOL12 N8) 8-8

IBM PS/2 Model 50 (BYTE VOL12 N9) 1-6IBM PS/2 Model 50 (BYTE VOL12 N9) 2-6IBM PS/2 Model 50 (BYTE VOL12 N9) 3-6IBM PS/2 Model 50 (BYTE VOL12 N9) 4-6IBM PS/2 Model 50 (BYTE VOL12 N9) 5-6IBM PS/2 Model 50 (BYTE VOL12 N9) 6-6

Publicité :

Publicité IBM PS2 (REPONSE MICRO1) 2-2

Publicité IBM PS2 (BYTE VOL15 I12) 1-2Publicité IBM PS2 (BYTE VOL15 I12) 2-2   Publicité IBM PS2 (L'ORDINATEUR INDIVIDUEL1)

Publicité IBM PS2 (SVM55) 1-2Publicité IBM PS2 (SVM55) 2-2   Publicité IBM PS/2 (BYTE 05-1988)
